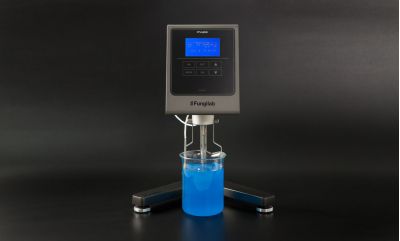

Smart Series
Essential in investigation and quality control Laboratories.
| Screen Data | |
|---|---|
| Selected speed | rpm |
| Selected spindle | SP |
| Viscosity reading | cP (mPa·s) or cSt |
| Percentatge of full scale | % |
| Sample temperature | oC or oF |
| Shear Rate (with coaxial spindles) | SR (s-1) |
| Shear Stress (with coaxial spindles) | SS (N/m2) |
| Density (introduced by the user) | g/cm3 |
| Viscosity reading | |
|---|---|
| Dynamic viscosity | cP or mPa·s |
| Kinematic viscosity | cSt |
| Units Converter | from SI to CGS |
| Program features |
|---|
| Time to torque: Ending of the test upon reaching a programmed torque |
| Time to stop: Ending of the test upon reaching a programmed time |
| 10 working memories |
| Other main features |
|---|
| AUTO-TEST with visual and resonant alarm |
| AUTO-RANGE function |
| Temperature Reading through PT100 probe |
| User-enabled viscosity and temperature calibration |
| 6 language options |
| Port: USB |
| Datalogger: Posibility to tranfer data to a pendrive into Excel format |
| 6 key Touch Keyboard |
Spindles
AISI 316 Stainless steel spindle, easily to identify according to its letter and number, in terms of the range of viscosity. Our units fulfills the next standards: These are the standards our units follow: BS: 6075, 5350
BS: 6075, 5350
ISO:2555,1652
ASTM: 115, 789, 1076, 1084, 1286, 1417, 1439, 1638, 1824, 2196, 2336, 2364, 2393, 2556, 2669, 2849, 2983, 2994, 3232, 3236, 3716
Standard delivery
The equipement is supplied complete with standard spindles
4 spindles for L model
6 spindles for R and H models
Viscometer stand
Spindle protector
Temperature probe PT100
Carring case
Technical specifications
Precision: +/- 1% full scale of range
Resolution: For a minus viscosity of 100 cP : 0.01 cP For a major viscosity of 1000 cP : 0.1 cP For a major viscosity of 5000 cP : 1.0 cP For a major viscosity of 10.000 cP : 5.0 cP For a major viscosity of 25.000 cP : 10.0 cP For a major viscosity of 50.000 cP : 25.0 cP For a major viscosity of 100.000 cP : 100.0 cP For a major viscosity of 1.000.000 cP : 1.000.0 cP
Repeatability: 0.2%
Temperature probe features: Temperature limits: -40oC to 300oC -40oF to 572oF Resolution: 0.1oC / -17.722 oF Precision: +/- 0.2oC / +/- 17.666 oF Type of probe: PT100
Supplied at 110-240VAC, 50/60 Hz.
Software: Fungilab Data Boss (optional): The Fungilab Data Boss software complies the FDA 21CFR PART 11 regulation
Accessories
APMSmall Sample Adapter with circulation jacket (without TL or TR spindles) Sample volume (6.7 - 13 ml.)Compatible with Brookfield viscometers
APM/BSmall Sample Adapter without circulation jacket (without TL or TR spindles) Sample volume (6.7 - 13 ml.)Compatible with Brookfield viscometers
LCPLow Viscosity Adapter with circulation jacket (with spindle) Sample volume (16 ml.)Compatible with Brookfield viscometers
LCP/BLow Viscosity Adapter without circulation jacket (with spindle) Sample volume (16 ml.)Compatible with Brookfield viscometers
HELDALHelix Drive Unit Accessory for measuring non-flowing substances viscosity (with spindles)
THERMOSPHERETemperature control unit up to 300 oC
| Code | Model | Measuring Range (cP) | Speed (r.p.m) | Number of speeds |
|---|---|---|---|---|
| V210003 | SMART L | *1 - 6.000.000 | 0.01 - 200 | 54 |
| V210002 | SMART R | 25 - 40.000.000 | 0.01 - 200 | 54 |
| V210001 | SMART H | 200 - 320.000.000 | 0.01 - 200 | 54 |
The viscosity range of the equipment is referenced between 0.01 and 100 rpm.PPRFast spindle switch (push plug and release)
| Code | Model | Measuring Range (cP) | Speed (r.p.m) | Number of speeds |
|---|---|---|---|---|
| V211003 | SMART L + PPR | *1 - 6.000.000 | 0.01 - 200 | 54 |
| V211002 | SMART R + PPR | 25 - 40.000.000 | 0.01 - 200 | 54 |
| V211001 | SMART H + PPR | 200 - 320.000.000 | 0.01 - 200 | 54 |
The viscosity range of the equipment is referenced between 0.01 and 100 rpm.
Ranges
(L) Low viscosity model
(M) Medium viscosity model
(H) High viscosity model
Low viscosity: The minimum viscosity when using a "L" range with standard spindles is 10cP. (*) For measurements<10cP, its recommended to use in conjunction with the low viscosity adaptor (LCP or LCP/B)
==========================================================
標準配置
主機、3級調平旋鈕、標準粘度轉子套件（L型4個，R型和H型6個）、轉子保護腿、轉子支架、PT100溫度探頭、含數據記錄軟件的CD、USB數據線、手提箱、電源線、校準證書、操作手冊
功能特點
>6鍵觸摸按鍵
>直觀的圖形顯示
>數據顯示
轉速：r.P.m
轉子：SP
粘度：cp（mPa.s）或cSt
滿量程的百分比：％
樣品溫度：℃或℉
剪切速度（SR）：S-l
剪切應力（SS）：N/m2
密度（需客戶輸入）：g/cm3
備注：剪切應力和剪切速率需要配套同軸轉子的時候才能顯示
>粘度測量：
動力粘度（cp或mPa.s)
運動粘度(cSt）（粘度測量之前，需要客戶提前輸入樣品密度值）
>單位換算：SI單位制轉換為CGS單位
>程序測量
可存儲10 個程序，便于以后快速調用；
可選擇TTT（到達某扭矩停止測量）和TTS（到達某時間段停止測量）測量模式。
>自檢功能：粘度計自檢功能，聲光報警提醒
>量程功能：選擇好轉子和轉速組合之后，將自動計算該組合下的最大量程（AUTO-RANGE 功能可以預測當前轉速和轉子組合下的粘度最大量程）
>通過PT100讀取溫度
>用戶自定義的粘度和溫度校準
>10種語言可選擇
>Datalogger軟件實現由USB口將實驗數據下載至電腦EXCEL軟件，并可打印輸出
技術規格
重復性：0.2％
精度：滿量程的±1％
粘度分辨率：
使用LCP（低粘度適配器）：0.01CP；
當粘度低于10000cP時：0.1cP；
當粘度高于10000cP時：1cP
溫度范圍：0℃—+300℃
溫度分辨率：0.1℃
溫度精度：±0.1℃
溫度探頭：PT100
所有轉子均有AISI A316不銹鋼制成
電源：100一240VAC，50/60HZ
標準配置
主機、3級調平旋鈕、標準粘度轉子套件（L型4個，R型和H型6個）、轉子保護腿、轉子支架、PT100溫度探頭、含數據記錄軟件的CD、USB數據線、手提箱、電源線、校準證書、操作手冊
可選附件
小樣品量樣品適配器APM、低粘度樣品適配器LCP、高粘度樣品適配器Heldal unit、標準硅油、水浴、通用適配器、PPR快拆系統、槳葉轉子
貨號 | 型號 | 測量范圍（cP） | 速度（r.p.m） | 檔數 |
V200003 | Smart L | *1-6,000,000 | 0.01-200 | 200 |
V200002 | Smart R | 25-40,000,000 | 0.01-200 | 200 |
V200001 | Smart H | 200-320,000,000 | 0.01-200 | 200 |
備注：L型配備超低粘度適配器，最低粘度可以測到1mpas.R型配備超低粘度適配器最低粘度可以測到15mpas。
